The HME DX100 allows up to 4 full duplex or 15 push-to-transmit shared users to speak to each other via headsets without any interconnecting cables. Much better than walkie-talkies - you can seamlessly communicate in hands-free mode or have a private conversation on a secured channel. You can even use AA/rechargeable batteries, NiMH, or 12-14VDC/automotive power.
Simple and expandable, the HME DX100 comes complete with everything you need for reliable, cost-effective operation for any application. Now you can mix and match two COMMUNICATORr models: the WH200 ComLink all-in-one, wireless headset or the BP200 beltpack with your choice of plug-in headset.
Features:
- 2.4 GHz license-free operation
- Digital frequency hopping spread spectrum
- Portable, compact design
- Flexible battery-powered operation
- Expandable system
Specifications:
- System Specifications
- RF Frequency Range All Band 2400-2483.5MHz
- Low Band 2401.9-2439.9MHz
- High Band 2443.4-2481.4MHz
- Frequency Response 200Hz-3.5kHz
- Distortion <2%
- RF Sensitivity
- Temperature Range -4 to 131°F (-20 to 55°C ) Typ.
- Transmit/Receive: Frequency-Hopping Spread
- Type: Spectrum (FHSS)
- Modulation Type Gaussian Filtered FSK,TDMA
- Encryption 64-bit
Communicator Specifications - Transmit Power 100mW Burst
- Antenna Internal, Dual-Diversity
- Mic Input Electret
- Headset Connector Mini-DIN
- Headset Output 160mW into 32 Ohms Capable of Driving 16 to 32 Ohms
- Size 3.4" x 2.6" x 1.5" (8.64cm x 6.60cm x 3.81cm)
- Weight 7.4oz (0.21kg) with Battery and Pouch
- Power Requirements One 3.6V Lithium-Ion Rechargeable
- Battery Life Hands-Free: Up to 14Hrs PTT: Up to 20Hrs
- FCC Acceptance Part 15 (No License Required)
Base Station Specifications - Transmit Power 100mW Burst
- TX & RX Antenna Dipole ½-Wave, Dual-Diversity Dipole
- Headset I/O DIN
- Headset Mic Input Electret
- Size 10.2" x 6.45" x 3.33" (25.91cm x 16.38cm x
- 8.46cm)
- Weight 2.42lb (1.1kg)
- Power Requirements 100-240VAC, 50-60Hz or 12-14VDC or Six "AA"
- Cells (Ni-MH Optional)
- Battery Life Up to 10 Hrs
- FCC Acceptance Part 15 (No License Required)
Includes:

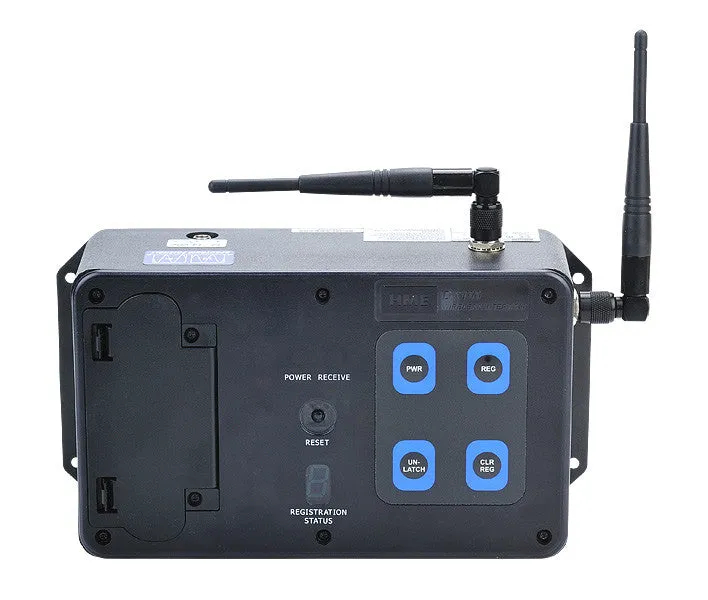

- 1 MB100 Mobile Base Station
- 4 HS15 Single Muff Headset with Noise Canceling Mic
- 4 BP200 Beltpack
- 4 Beltpack Pouch
- 8 BAT41 Battery Li-ion Rechargeable
- 1 AC40A Battery Charger
- 2 12VDC 60W Power Supply (100/240VAC Universal)
- 2 115VAC Power Cord
