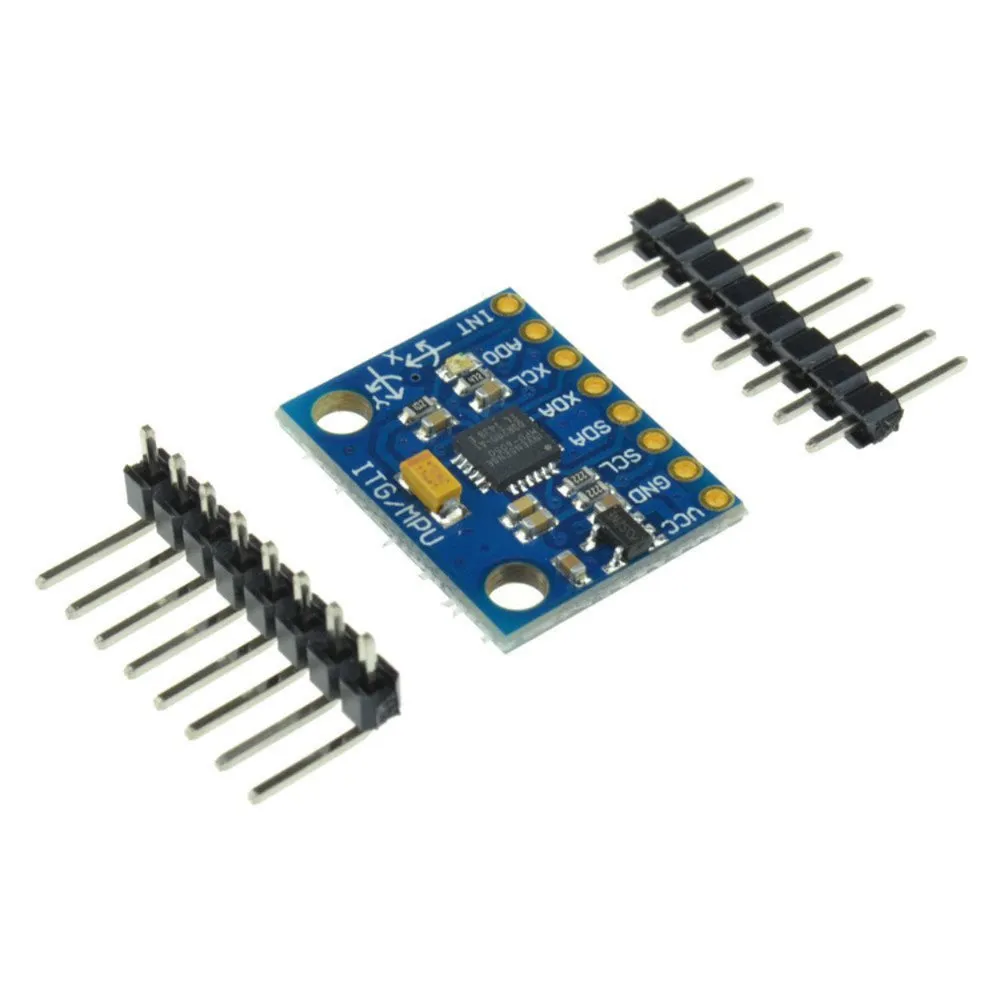

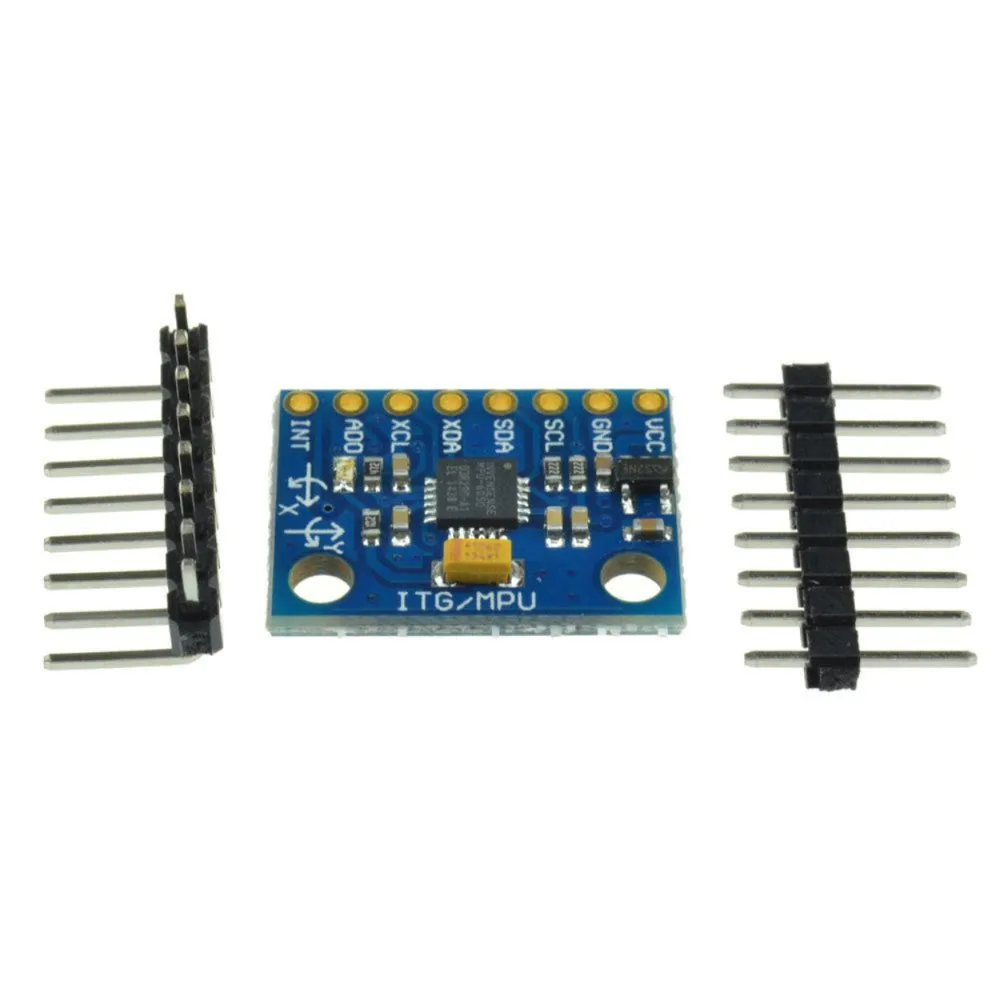

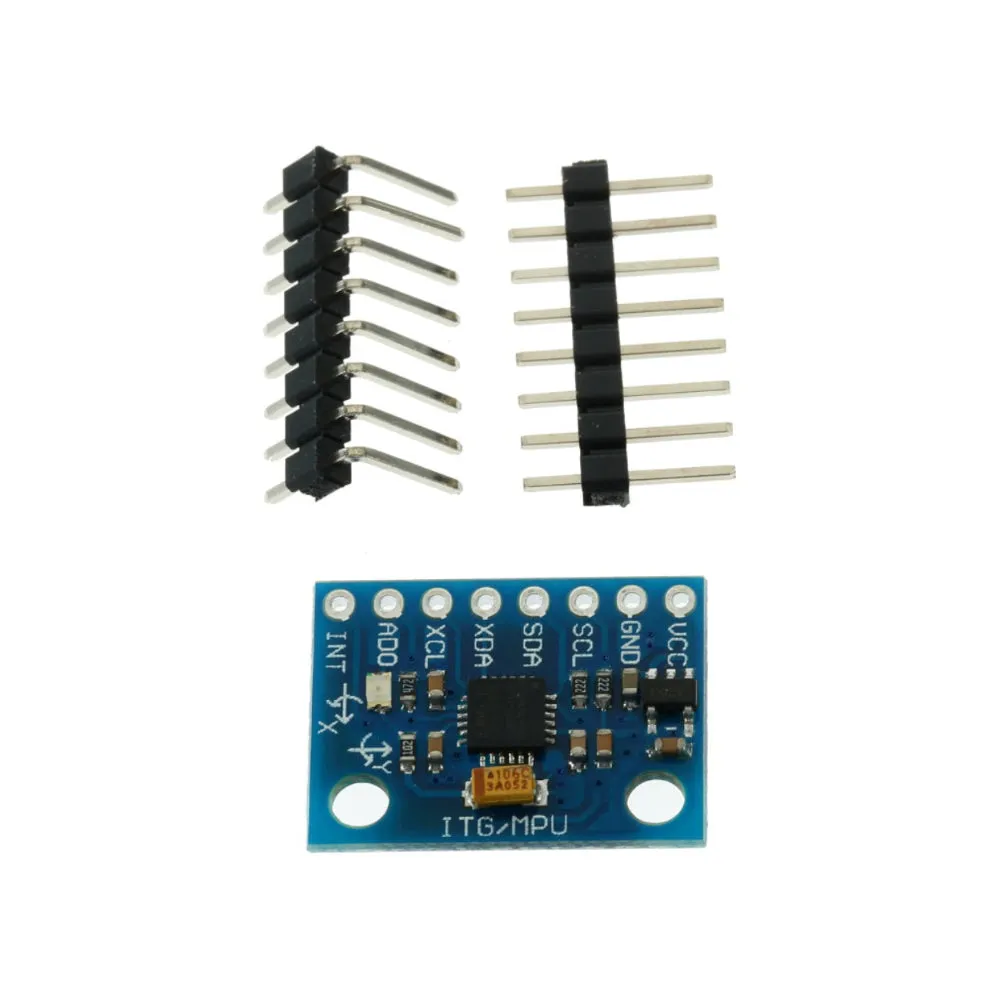

MPU-6050 3-Axis Accelerometer and Gyroscope Sensor

The MPU6050 devices combine a 3-axis gyroscope and a 3-axis accelerometer on the same silicon together with an onboard Digital Motion Processor (DMP) capable of processing complex 9-axis MotionFusion algorithms.

Technical Details

  • Model: Accelerometer & Gyroscope Sensor
  • Voltage: 3 to 5 VDC
  • Driver IC: MPU-6050
  • Communication: I²C
  • Gyroscope Range: ±250, 500, 1000, 2000°/s
  • Acceleration: ±2, ±4, ±8, ±16g
  • Length: 20mm
  • Width: 16mm
  • Weight (gm) : 2.6

Features

  • 16-bit AD converter, 16-bit data output
  • I²C output: 6/9-axis MotionFusion (rotation matrix, quaternion, Euler, or raw data)
  • Select solder jumpers for CLK, FSYNC, AD0
  • Digital Motion Processing™ (DMP™) for MotionFusion, timing, and gesture detection
  • Embedded algorithms for bias and compass calibration (no user input)
  • Digital-output temperature sensor

Application:

  • Motion Tracking for Wearable Devices: Detects user movement and orientation for fitness trackers, smartwatches, and other wearable technologies.

  • Gesture Recognition in User Interfaces: Used to recognize user gestures, enabling touchless control in various devices and applications.

  • Robotics for Position and Orientation Control: Provides accurate motion data to help robots navigate and control their position and orientation in space.

  • Drone Stabilization and Flight Control Systems: Stabilizes drones by measuring orientation and accelerations to ensure smooth flight and correct movements.

  • Balance and Navigation Systems for Self-Balancing Robots: Helps maintain balance and control in self-balancing robots, such as Segways or balance scooters.

  • Game Controllers for Motion-Sensitive Gaming: Tracks motion and orientation for interactive gaming controllers, providing a more immersive experience.

  • Health Monitoring for Detecting Activity Levels: Monitors physical activity and movement patterns, helping detect and track exercise, sleep, and other health parameters.

  • Virtual Reality (VR) and Augmented Reality (AR) Motion Tracking: Tracks head or body movement for a more realistic and immersive experience in VR and AR environments.

  • Vehicle Collision Detection and Crash Monitoring: Detects rapid changes in motion or impact, helping in collision detection and crash data logging for vehicle safety systems.

  • Camera Stabilization for Smooth Footage Capture: Stabilizes cameras in gimbals or drones to ensure smooth and shake-free footage, especially during dynamic movements.

Integration with Arduino of MPU6050 Accelerometer

Physical Attributes

  • Length: 20mm
  • Width: 16mm
  • Weight (gm) : 2.6

Package Includes

  • 1 x MPU-6050 Gyro Sensor Accelerometer
  • 1 x 1*8 Right-angle Burg Connector Pins
  • 1 x 1*8 Straight Burg Connector Pins
